How to remove and reinstall the steering gear assembly for the Honda Crosstour?

Disconnect the battery and drain the power steering fluid. Loosen lug nuts, raise the vehicle, and remove wheels. Under the dashboard, remove and mark the steering universal joint. Detach tie-rod ends and remove the heat shield. Disconnect the return hose and feed line anchors, and remove the lines from the rack and pinion. Remove the middle mounts and shock tower cross brace. Disconnect the EPS motor angle sensor and motor electrical connectors. Remove the mounting bolts on the left side of the rack and pinion. Lower the subframe with jacks and remove the right side mounting bolts. Remove the rack and pinion assembly through the left wheel opening. For installation, reverse the steps, ensuring proper torque on bolts and replacing loosened subframe bolts. Refill the power steering pump, bleed the system, check for leaks, and adjust alignment if necessary. Reconnect the battery.

Genuine Honda Crosstour Rack And Pinion

Steering Rack And Pinion

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Rack And Pinions found

View related parts
Honda Crosstour Rack, Power Steering
Part Number: 06536-TP6-305RM
$457.29 MSRP: $653.82
You Save: $196.53 (31%)
ADD TO CART
Product Specifications
- Replaces: 53600-TP6-A02RM
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2010-2012 Honda Crosstour | 5 Door EX (2WD), 5 Door EX-L (2WD), 5 Door EX-L (4WD) | KA 5AT
View related parts
Honda Crosstour Box, Power Steering Gear
Part Number: 53601-TP6-A62
$2247.99 MSRP: $3243.85
You Save: $995.86 (31%)
ADD TO CART
Product Specifications
- Other Name: Steering Gear; Gear Assembly
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2013-2015 Honda Crosstour | 5 Door EX (2WD), 5 Door EX-L (2WD), 5 Door EX-L (4WD) | KA 6AT
View related parts
Honda Crosstour Box, Steering Gear
Part Number: 53601-TP6-A01
$985.23 MSRP: $1421.68
You Save: $436.45 (31%)
ADD TO CART
Product Specifications
- Other Name: Steering Gear; Gear Assembly
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2010-2012 Honda Crosstour | 5 Door EX (2WD), 5 Door EX-L (2WD), 5 Door EX-L (4WD) | KA 5AT
View related parts
Honda Crosstour Box, Steering Gear
Part Number: 53601-TY4-A02
$985.23 MSRP: $1421.68
You Save: $436.45 (31%)
ADD TO CART
Product Specifications
- Other Name: Steering Gear; Gear Assembly
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2012-2015 Honda Crosstour | 5 Door EX, 5 Door EX-L | KA 5AT
View related parts
Honda Crosstour Rack, Steering
Part Number: 53626-TP6-A01
$102.39 MSRP: $144.61
You Save: $42.22 (30%)
ADD TO CART
Product Specifications
- Other Name: Rack
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2010-2015 Honda Crosstour | 5 Door EX, 5 Door EX (2WD), 5 Door EX-L, 5 Door EX-L (2WD), 5 Door EX-L (4WD) | KA 5AT
View related parts
Honda Crosstour Rack Sub-Assy., Power Steering
Part Number: 53608-TE1-A01
$208.97 MSRP: $297.68
You Save: $88.71 (30%)
ADD TO CART
Product Specifications
- Other Name: Steering Gear Housing; Housing
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2010-2015 Honda Crosstour | 5 Door EX, 5 Door EX (2WD), 5 Door EX-L, 5 Door EX-L (2WD), 5 Door EX-L (4WD) | KA 5AT

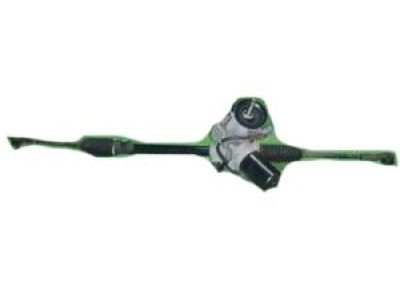

Honda Crosstour Rack And Pinion

The Honda Crosstour Rack And Pinion is among the central assemblies of a vehicle which translate the circular movement of the steering wheel into the linear motion of the front wheels. This is a type of a mechanical system that entails gears enclosed in metallic tube where the rack is linked with tie-rods as it provides the pressure to steer the wheels. Many of today's cars, including the Crosstour, have electric power-assisted rack and pinion steering aided by hydraulic systems that supply pressurized for steering assistance. However, problems such as: damages to the seals comes with time and this may result in the development of the strict steering or grinding sounds, hence the need to change on the rack and pinion assembly. The operation of the rack and pinion system in the Honda Crosstour is the one that aligns with the objective of this paper since it provides responsive and precise steering mechanism feedback for the driver.

In search of affordable OEM Honda Crosstour Rack And Pinion? Consider browsing through our extensive inventory of genuine Honda Crosstour Rack And Pinion. Not only do we provide market-leading prices and a manufacturer's warranty, but we also pride ourselves on exceptional customer service and swift delivery.

Honda Crosstour Rack And Pinion Parts Questions & Experts Answers

Box, Steering Gear
53601-TP6-A01
Q: How to remove and reinstall the steering gear assembly for the Honda Crosstour?
A: Disconnect the battery and drain the power steering fluid. Loosen lug nuts, raise the vehicle, and remove wheels. Under the dashboard, remove and mark the steering universal joint. Detach tie-rod ends and remove the heat shield. Disconnect the return hose and feed line anchors, and remove the lines from the rack and pinion. Remove the middle mounts and shock tower cross brace. Disconnect the EPS motor angle sensor and motor electrical connectors. Remove the mounting bolts on the left side of the rack and pinion. Lower the subframe with jacks and remove the right side mounting bolts. Remove the rack and pinion assembly through the left wheel opening. For installation, reverse the steps, ensuring proper torque on bolts and replacing loosened subframe bolts. Refill the Power Steering Pump, bleed the system, check for leaks, and adjust alignment if necessary. Reconnect the battery.
