How to replace the front crankshaft seal for the Honda Pilot?

Remove the crankshaft position sensor, then remove the timing belt and crankshaft sprocket. Carefully pry the seal out of the engine with a screwdriver or seal removal tool. If you use a screwdriver, don't scratch the housing bore or damage the crankshaft. If the crankshaft is scratched, the new seal will end up leaking. Clean the oil seal bore and coat the outer edge of the new seal with a small amount of engine oil to ease installation. Apply multi-purpose grease to the seal lip. Using a seal driver or a socket with an outside diameter slightly smaller than the outside diameter of the seal, carefully drive the new seal into place with a hammer. Make sure it's installed squarely and driven in to the same depth as the original. Reinstall the crankshaft sprocket and timing belt. Run the engine and check for oil leaks at the front seal.

How to remove and replace a rear main seal without removing the oil pan or seal retainer for the Honda Pilot?

Remove the driveplate. The seal can be replaced without removing the oil pan or removing the seal retainer. However, the lip of the seal is quite stiff and it's possible to cock the seal in the retainer bore or damage it during installation. Pry out the old seal with a screwdriver. Carefully pry the rear main seal out - don't damage the surface of the crankshaft or the new seal will leak. Apply multi-purpose grease to the crankshaft seal journal and the lip of the new seal, then carefully drive the new seal into place with a seal driver. The lip is stiff, so carefully work it onto the seal journal of the crankshaft. Don't rush it or you may damage the seal. Drive the seal in squarely and only until it is flush with the back of the seal plate, no further. Make sure the spring side is facing in.

Genuine Honda Pilot Crankshaft Seal

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Crankshaft Seals found

View related parts

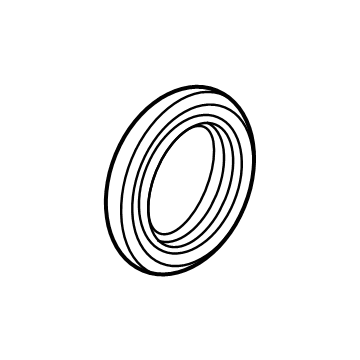

Honda Pilot Oil Seal (41X56X7)
Part Number: 91212-5MR-A01
$9.65 MSRP: $13.63
You Save: $3.98 (30%)
ADD TO CART
Product Specifications
- Other Name: Crankshaft Seal, Front Crank Seal
- Replaces: 91212-RCA-A01, 91212-R70-A01, 91212-R70-A02, 91212-RCA-A02, 91345-PDA-E01
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2005-2022 Honda Pilot | 5 Door Black (AWD), 5 Door ELITE (AWD), 5 Door EX, 5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX (AWD), 5 Door EX 4.4 (4WD), 5 Door EX-L, 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door EX-L (AWD), 5 Door EX-SE (2WD), 5 Door EX-SE (4WD), 5 Door LX, 5 Door LX (2WD), 5 Door LX (4WD), 5 Door LX (AWD), 5 Door LX 4.2 (4WD), 5 Door LX-VP (2WD), 5 Door LX-VP (4WD), 5 Door SE (2WD), 5 Door SE (4WD), 5 Door SE (AWD), 5 Door Touring (2WD), 5 Door Touring (4WD), 5 Door Touring (AWD), Black Edition, EX-L, Elite, Special Edition, Sport, Touring, TrailSport | KA 5AT, KA 6AT, KA 9AT
View related parts
Honda Pilot Oil Seal (41X56X7) (Nok)
Part Number: 91212-R70-A02
$9.65 MSRP: $13.63
You Save: $3.98 (30%)
ADD TO CART
Product Specifications
- Other Name: Front Crank Seal
- Replaced by: 91212-5MR-A01
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2005-2021 Honda Pilot | 5 Door Black (AWD), 5 Door ELITE (AWD), 5 Door EX, 5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX (AWD), 5 Door EX 4.4 (4WD), 5 Door EX-L, 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door EX-L (AWD), 5 Door EX-SE (2WD), 5 Door EX-SE (4WD), 5 Door LX, 5 Door LX (2WD), 5 Door LX (4WD), 5 Door LX (AWD), 5 Door LX 4.2 (4WD), 5 Door LX-VP (2WD), 5 Door LX-VP (4WD), 5 Door SE (2WD), 5 Door SE (4WD), 5 Door SE (AWD), 5 Door Touring (2WD), 5 Door Touring (4WD), 5 Door Touring (AWD) | KA 5AT, KA 6AT, KA 9AT
View related parts
Honda Pilot Oil Seal (80X98X8) (Nok)
Part Number: 91214-RKG-003
$20.12 MSRP: $28.42
You Save: $8.30 (30%)
ADD TO CART
Product Specifications
- Other Name: Rear Main Seal
- Replaces: 91214-R70-A01, 91214-RBB-003, 91214-RCA-A01
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2005-2022 Honda Pilot | 5 Door Black (AWD), 5 Door ELITE (AWD), 5 Door EX, 5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX (AWD), 5 Door EX 4.4 (4WD), 5 Door EX-L, 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door EX-L (AWD), 5 Door EX-SE (2WD), 5 Door EX-SE (4WD), 5 Door LX, 5 Door LX (2WD), 5 Door LX (4WD), 5 Door LX (AWD), 5 Door LX 4.2 (4WD), 5 Door LX-VP (2WD), 5 Door LX-VP (4WD), 5 Door SE (2WD), 5 Door SE (4WD), 5 Door SE (AWD), 5 Door Touring (2WD), 5 Door Touring (4WD), 5 Door Touring (AWD), Black Edition, EX-L, Elite, Special Edition, Sport, Touring, TrailSport | KA 5AT, KA 6AT, KA 9AT
View related parts
Honda Pilot Oil Seal (41X56X7) (Arai)
Part Number: 91212-R70-A01
$9.65 MSRP: $13.63
You Save: $3.98 (30%)
ADD TO CART
Product Specifications
- Replaced by: 91212-5MR-A01
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2005-2021 Honda Pilot | 5 Door Black (AWD), 5 Door ELITE (AWD), 5 Door EX, 5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX (AWD), 5 Door EX 4.4 (4WD), 5 Door EX-L, 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door EX-L (AWD), 5 Door EX-SE (2WD), 5 Door EX-SE (4WD), 5 Door LX, 5 Door LX (2WD), 5 Door LX (4WD), 5 Door LX (AWD), 5 Door LX 4.2 (4WD), 5 Door LX-VP (2WD), 5 Door LX-VP (4WD), 5 Door SE (2WD), 5 Door SE (4WD), 5 Door SE (AWD), 5 Door Touring (2WD), 5 Door Touring (4WD), 5 Door Touring (AWD) | KA 5AT, KA 6AT, KA 9AT
View related parts
Honda Pilot Oil Seal (80X98X8) (Nok)
Part Number: 91214-RCA-A01
$20.12 MSRP: $28.42
You Save: $8.30 (30%)
ADD TO CART
Product Specifications
- Other Name: Rear Main Seal
- Replaced by: 91214-RKG-003
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2005-2021 Honda Pilot | 5 Door Black (AWD), 5 Door ELITE (AWD), 5 Door EX, 5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX (AWD), 5 Door EX 4.4 (4WD), 5 Door EX-L, 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door EX-L (AWD), 5 Door EX-SE (2WD), 5 Door EX-SE (4WD), 5 Door LX, 5 Door LX (2WD), 5 Door LX (4WD), 5 Door LX (AWD), 5 Door LX 4.2 (4WD), 5 Door LX-VP (2WD), 5 Door LX-VP (4WD), 5 Door SE (2WD), 5 Door SE (4WD), 5 Door SE (AWD), 5 Door Touring (2WD), 5 Door Touring (4WD), 5 Door Touring (AWD) | KA 5AT, KA 6AT, KA 9AT
View related parts
Honda Pilot Oil Seal (80X98X10) (Nok)
Part Number: 91214-P8A-A01
$12.92 MSRP: $18.25
You Save: $5.33 (30%)
ADD TO CART
Product Specifications
- Other Name: Rear Main Seal
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2003-2004 Honda Pilot | 5 Door EX, 5 Door EX-L, 5 Door LX | KA 5AT, KL 5AT
View related parts
Honda Pilot Oil Seal (41X56X8)
Part Number: 91212-P8A-A01
$13.37 MSRP: $18.88
You Save: $5.51 (30%)
ADD TO CART
Product Specifications
- Other Name: Front Crank Seal; Oil Seal
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2003-2004 Honda Pilot | 5 Door EX, 5 Door EX-L, 5 Door LX | KA 5AT, KL 5AT
View related parts
Honda Pilot OIL SEAL (80X98X8)
Part Number: 91214-6S9-A01
$14.20 MSRP: $20.23
You Save: $6.03 (30%)
ADD TO CART
Product Specifications
- Other Name: Crankshaft Seal
- Replaces: 91214-R9P-A01
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2023-2024 Honda Pilot | Elite, EX-L, Sport, Touring, TrailSport

Honda Pilot Crankshaft Seal

The Crankshaft Seal a Honda Pilot is an element installed at the front of the engine that minimizes the loss of engine oil from the crankcase. This round seal is commonly made out of a composite of metal and rubber and it is a very important one that has the function of supplying lubrication to several parts of the engine whilst reducing friction and thus the wearing of these parts. Unfortunately, the Crankshaft Seal that may become worn or damaged will show signs like oil seepage, most especially in old cars and hence will need to be replaced. Small changes may be made between model years, as it is a progressive development of the design of the material or engineering. The Crankshaft Seal requires constant checking and replacement if it becomes worn out or damaged in order to maintain maximum performance of any car's engine.

In search of affordable OEM Honda Pilot Crankshaft Seal? Consider browsing through our extensive inventory of genuine Honda Pilot Crankshaft Seal. Not only do we provide market-leading prices and a manufacturer's warranty, but we also pride ourselves on exceptional customer service and swift delivery.

Honda Pilot Crankshaft Seal Parts Questions & Experts Answers

Oil Seal (41X56X7) (Nok)
91212-R70-A02
Q: How to replace the front crankshaft seal for the Honda Pilot?
A: Remove the crankshaft position sensor, then remove the Timing Belt and crankshaft sprocket. Carefully pry the seal out of the engine with a screwdriver or seal removal tool. If you use a screwdriver, don't scratch the housing bore or damage the crankshaft. If the crankshaft is scratched, the new seal will end up leaking. Clean the oil seal bore and coat the outer edge of the new seal with a small amount of engine oil to ease installation. Apply multi-purpose grease to the seal lip. Using a seal driver or a socket with an outside diameter slightly smaller than the outside diameter of the seal, carefully drive the new seal into place with a hammer. Make sure it's installed squarely and driven in to the same depth as the original. Reinstall the crankshaft sprocket and timing belt. Run the engine and check for oil leaks at the front seal.
Oil Seal (41X56X8)
91212-P8A-A01
Q: How to remove and replace a rear main seal without removing the oil pan or seal retainer for the Honda Pilot?
A: Remove the driveplate. The seal can be replaced without removing the Oil Pan or removing the seal retainer. However, the lip of the seal is quite stiff and it's possible to cock the seal in the retainer bore or damage it during installation. Pry out the old seal with a screwdriver. Carefully pry the rear main seal out - don't damage the surface of the crankshaft or the new seal will leak. Apply multi-purpose grease to the crankshaft seal journal and the lip of the new seal, then carefully drive the new seal into place with a seal driver. The lip is stiff, so carefully work it onto the seal journal of the crankshaft. Don't rush it or you may damage the seal. Drive the seal in squarely and only until it is flush with the back of the seal plate, no further. Make sure the spring side is facing in.
