How do you remove the air filter housing on Honda Fit?

To begin with, locate the electrical connector of the Intake Air Temperature (IAT) sensor and unplug it, and next, loosen the clamp at the throttle body in cars that are of 2007 and 2008 models. After that, unbolt the PCV fresh air hose at the air Filter Box and pull out the fresh air duct out of it. Following that, remove the two air Filter Box mounting bolts and pull the air Filter Box out from the car and disconnect the fresh air intake duct from the left side. To start, on 2009 and later models, remove the electrical connection to the MAF/IAT sensor and remove the wiring harness retainer at the mount near the filter box. Erase the air Filter Box cover and the air filter element then, take off the PCV fresh air hose from the box. Following that, you need to take out the two bolts and the upper filter box chamber in addition to the loosening of the hose clamp over the throttle body as well as the removal of the battery hold-down to have a better view of this battery. Lastly, turn the rear of the air Filter Box anti-clockwise and upwards to pull out together with the upper hose of the radiator and breather hose if necessary. For both models, installation is the reverse of removal.

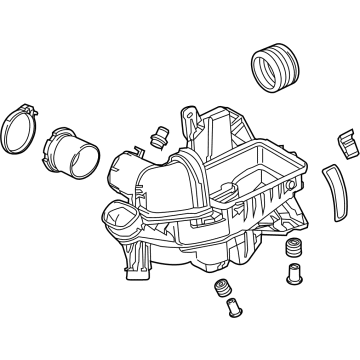

Genuine Honda Fit Air Filter Box

Air Filter Housing

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Air Filter Boxs found

View related parts
Honda Fit Cover, Air Cleaner
Part Number: 17210-RB0-000
$35.44 MSRP: $50.06
You Save: $14.62 (30%)
ADD TO CART
Product Specifications
- Other Name: Front Cover
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2009-2013 Honda Fit | 5 Door FIT, 5 Door Sport | KA 5AT, KA 5MT
View related parts
Honda Fit Cover, Air Cleaner
Part Number: 17210-PWA-J10
$27.60 MSRP: $38.98
You Save: $11.38 (30%)
ADD TO CART
Product Specifications
- Other Name: Upper Cover
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2007-2008 Honda Fit | 5 Door Base, 5 Door Sport | KA 5AT, KA 5MT
View related parts
Honda Fit Case Set, Air Cleaner
Part Number: 17201-5R1-J01
$97.35 MSRP: $137.50
You Save: $40.15 (30%)
ADD TO CART
Product Specifications
- Other Name: Air Cleaner Assembly
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2016-2017 Honda Fit | 5 Door EX, 5 Door EX-L, 5 Door EX-LN, 5 Door LX | KA CVT
View related parts
Honda Fit Case Set, Air Cleaner
Part Number: 17201-RME-A00
$114.02 MSRP: $161.05
You Save: $47.03 (30%)
ADD TO CART
Product Specifications
- Other Name: Air Cleaner Body
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2007-2008 Honda Fit | 5 Door Base, 5 Door Sport | KA 5AT, KA 5MT
View related parts
Honda Fit Cover, Air Cleaner
Part Number: 17210-5R7-A01
$24.80 MSRP: $35.03
You Save: $10.23 (30%)
ADD TO CART
Product Specifications
- Other Name: Upper Cover
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2015-2020 Honda Fit | 5 Door EX, 5 Door EX-L, 5 Door EX-LN, 5 Door LX, 5 Door LX SE, 5 Door Sport | KA 6MT, KA CVT
View related parts
Honda Fit Cover, Air Cleaner
Part Number: 17210-5R1-J01
$32.97 MSRP: $46.57
You Save: $13.60 (30%)
ADD TO CART
Product Specifications
- Other Name: Upper Cover
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2016-2017 Honda Fit | 5 Door EX, 5 Door EX-L, 5 Door EX-LN, 5 Door LX | KA CVT
View related parts
Honda Fit Case Set, Air Cleaner
Part Number: 17201-RP3-A00
Product Specifications
- Other Name: Air Cleaner Assembly
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2009-2010 Honda Fit | 5 Door FIT, 5 Door Sport | KA 5AT, KA 5MT
View related parts
Honda Fit Case Set, Air Cleaner
Part Number: 17201-RP3-A10
$78.45 MSRP: $110.80
You Save: $32.35 (30%)
Product Specifications
- Other Name: Air Cleaner Assembly
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2011-2013 Honda Fit | 5 Door FIT, 5 Door Sport | KA 5AT, KA 5MT
View related parts
Honda Fit Case Set, Air Cleaner
Part Number: 17201-5R7-A01
Product Specifications
- Other Name: Air Cleaner Assembly
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2015-2020 Honda Fit | 5 Door EX, 5 Door EX-L, 5 Door EX-LN, 5 Door LX, 5 Door LX SE, 5 Door Sport | KA 6MT, KA CVT

Honda Fit Air Filter Box Parts Questions & Experts Answers

Cover, Air Cleaner
17210-PWA-J10
Q: How do you remove the air filter housing on Honda Fit?
A: To begin with, locate the electrical connector of the Intake Air Temperature (IAT) sensor and unplug it, and next, loosen the clamp at the Throttle Body in cars that are of 2007 and 2008 models. After that, unbolt the PCV fresh air hose at the air Filter Box and pull out the fresh air duct out of it. Following that, remove the two air Filter Box mounting bolts and pull the air Filter Box out from the car and disconnect the fresh air intake duct from the left side. To start, on 2009 and later models, remove the electrical connection to the MAF/IAT sensor and remove the wiring harness retainer at the mount near the filter box. Erase the air Filter Box cover and the air filter element then, take off the PCV fresh air hose from the box. Following that, you need to take out the two bolts and the upper filter box chamber in addition to the loosening of the hose clamp over the throttle body as well as the removal of the battery hold-down to have a better view of this battery. Lastly, turn the rear of the air Filter Box anti-clockwise and upwards to pull out together with the upper hose of the radiator and breather hose if necessary. For both models, installation is the reverse of removal.
