How to replace the steering gear boot on a Honda Pilot?

Loosen the lug nuts, raise the front of the vehicle and support it securely on jack stands. Remove the wheel. Remove the tie-rod end and jam nut. Remove the rack and pinion boot clamps (the outer one can be removed with pliers; the inner one must be cut off) and slide the boot off. Before installing the new boot, wrap the threads and serrations on the end of the steering rod with a layer of tape so the small end of the new boot isn't damaged. Slide the new boot into position on the rack and pinion until it seats in the groove in the steering rod and install new clamps. Remove the tape and install the tie-rod end. Install the wheel and lug nuts. Lower the vehicle and tighten the lug nuts to the torque.

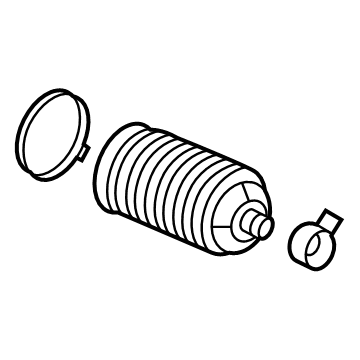

Genuine Honda Pilot Rack and Pinion Boot

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Rack and Pinion Boots found

View related parts
Honda Pilot Boot, Tie Rod End
Part Number: 53546-STX-A02
$5.37 MSRP: $7.58
You Save: $2.21 (30%)
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod Dust Cap
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2009-2022 Honda Pilot | 5 Door Black (AWD), 5 Door ELITE (AWD), 5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX (AWD), 5 Door EX 4.4 (4WD), 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door EX-L (AWD), 5 Door LX (2WD), 5 Door LX (4WD), 5 Door LX (AWD), 5 Door LX 4.2 (4WD), 5 Door SE (2WD), 5 Door SE (4WD), 5 Door SE (AWD), 5 Door Touring (2WD), 5 Door Touring (4WD), 5 Door Touring (AWD), Black Edition, EX-L, Elite, Special Edition, Sport, Touring, TrailSport | KA 5AT, KA 6AT, KA 9AT
View related parts
Honda Pilot Dust Seal, Tie Rod
Part Number: 53534-SZA-A02
$3.23 MSRP: $4.57
You Save: $1.34 (30%)
ADD TO CART
Product Specifications
- Other Name: Tie Rod Boot; Boot
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2009-2015 Honda Pilot | 5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX 4.4 (4WD), 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door LX (2WD), 5 Door LX (4WD), 5 Door LX 4.2 (4WD), 5 Door SE (2WD), 5 Door SE (4WD), 5 Door Touring (2WD), 5 Door Touring (4WD) | KA 5AT
View related parts
Honda Pilot Boot, Tie Rod End
Part Number: 53546-S3V-A02
$11.13 MSRP: $15.71
You Save: $4.58 (30%)
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod Dust Cap; Dust Cover
- Replaces: 53546-S3V-A01
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2003-2008 Honda Pilot | 5 Door EX, 5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX-L, 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door EX-SE (2WD), 5 Door EX-SE (4WD), 5 Door LX, 5 Door LX (2WD), 5 Door LX (4WD), 5 Door LX-VP (2WD), 5 Door LX-VP (4WD) | KA 5AT, KL 5AT
View related parts
Honda Pilot Dust Seal Set, Tie Rod
Part Number: 53429-TG7-A01
$19.73 MSRP: $27.87
You Save: $8.14 (30%)
ADD TO CART
Product Specifications
- Other Name: Tie Rod Boot; Boot
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2016-2022 Honda Pilot | 5 Door Black (AWD), 5 Door ELITE (AWD), 5 Door EX (2WD), 5 Door EX (AWD), 5 Door EX-L (2WD), 5 Door EX-L (AWD), 5 Door LX (2WD), 5 Door LX (AWD), 5 Door SE (2WD), 5 Door SE (AWD), 5 Door Touring (2WD), 5 Door Touring (AWD), Black Edition, EX-L, Elite, Special Edition, Sport, Touring, TrailSport | KA 6AT, KA 9AT
View related parts
Honda Pilot Dust Seal, Tie Rod
Part Number: 53534-S3V-A01
$21.29 MSRP: $30.06
You Save: $8.77 (30%)
ADD TO CART
Product Specifications
- Other Name: Tie Rod Boot; Boot
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2003-2008 Honda Pilot | 5 Door EX, 5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX-L, 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door EX-SE (2WD), 5 Door EX-SE (4WD), 5 Door LX, 5 Door LX (2WD), 5 Door LX (4WD), 5 Door LX-VP (2WD), 5 Door LX-VP (4WD) | KA 5AT, KL 5AT
View related parts
Honda Pilot DUST SEAL SET
Part Number: 53492-T90-A01
$96.83 MSRP: $136.77
You Save: $39.94 (30%)
ADD TO CART
Product Specifications
- Other Name: Boot
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2023-2024 Honda Pilot | Elite, EX-L, Sport, Touring, TrailSport

Honda Pilot Rack and Pinion Boot

The Rack and Pinion Boot in Honda Pilot cars is a very essential to protect the steering rack from getting into contact with dirt and other elements. This rubber component covered the two extremes of the matrix, in essence, the inner complexions of this matrix remain encased. Rack and Pinion Boot failure- This is one of the main causes of rack and pinion system failure if the Rack and Pinion Boot has cracked or damaged in a certain level. It is said that over the years, Honda Pilot models might have adopted different styles of Rack and Pinion Boot, however, there are no variations expounded. The primary function remains consistent across these types: to protect the interfaced parts of the car from any foreign objects that can compromise on the efficacy of the steering system.

In search of affordable OEM Honda Pilot Rack and Pinion Boot? Consider browsing through our extensive inventory of genuine Honda Pilot Rack and Pinion Boot. Not only do we provide market-leading prices and a manufacturer's warranty, but we also pride ourselves on exceptional customer service and swift delivery.

Honda Pilot Rack and Pinion Boot Parts Questions & Experts Answers

Boot, Tie Rod End
53546-S3V-A02
Q: How to replace the steering gear boot on a Honda Pilot?
A: Loosen the lug nuts, raise the front of the vehicle and support it securely on jack stands. Remove the wheel. Remove the tie-rod end and jam nut. Remove the rack and pinion boot clamps (the outer one can be removed with pliers; the inner one must be cut off) and slide the boot off. Before installing the new boot, wrap the threads and serrations on the end of the steering rod with a layer of tape so the small end of the new boot isn't damaged. Slide the new boot into position on the rack and pinion until it seats in the groove in the steering rod and install new clamps. Remove the tape and install the tie-rod end. Install the wheel and lug nuts. Lower the vehicle and tighten the lug nuts to the torque.
