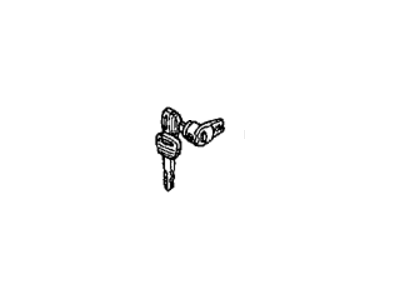

Genuine Honda Del Sol Door Lock Cylinder

Honda Del Sol Door Lock Cylinder Parts Questions & Experts Answers

• Cylinder, Passenger Side Door
  72145-SR3-003
  Q: How do you replace the door handle, Door Latch and lock cylinder on Honda Del Sol?

  A: To replace the outside door handle, therefore, one has to take off the inside door handle, the Door Trim Panel as well as a plastic shield. Wind it around the handle opening since this is the area that the paint is most likely to get damaged. For rear doors, a position of rear glass channel must be changed, to do this , the upper channel nut has to be loosened and the lower bolt has to be removed then the channel has to be shifted forward. Secondly, thereafter, unscrew the door handle retaining bolts and if possible do away with the door latch so as to get better access to the door. With the help of a small flat-bladed screwdriver, pry the lock rod loose, pull the handle outwards from the door and turn it anti-clockwise to de-thread it from the release rod. The process of removal is done in an order of inversion to the process of installation. The lock cylinder can be replaced by first removing the outside door handle and by pulling a retainer clip to remove the lock cylinder from the handle; the installation process is the reverse of the removal process. For the latch, if not done earlier, remove the lock and inner handle rod, take the door latch retaining screws, and slowly pull the latch out of the door making sure not to bend the rods. Remove the lock and release rods from the latch assembly and replace it with new latch unit and installation process is just vice versa.
