Genuine Honda Civic Instrument Cluster

Honda Civic Instrument Cluster Parts Questions & Answers

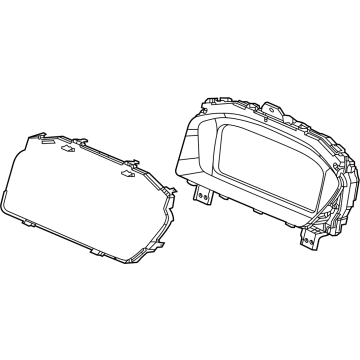

• Meter Assembly, Combination
  78200-TR0-A41
  Q: How to replace the instrument cluster in a Honda Civic?

  A: Disconnect the cable from the negative battery terminal and wait at least three minutes before proceeding. Warning: Replacing the instrument cluster requires the use of the factory scanner to store the information retained in the old cluster and then download it into the replacement cluster. For the Civic, remove the driver's side lower trim (knee bolster) and the instrument cluster assembly trim panels. Remove the screws retaining the instrument cluster to the dash; the configuration may vary slightly by model, but the removal process remains the same. Disconnect the electrical connectors and remove the cluster, then reinstall by reversing the removal steps and reconnect the cable to the negative battery terminal. For the CR-V, disconnect the negative battery terminal and wait at least three minutes before proceeding. Carefully pry the instrument cluster blind trim panel off, then use a flat bladed trim tool to remove the instrument cluster trim. Remove the three screws retaining the instrument cluster to the dash, disconnect the electrical connections, and remove the cluster. Installation is the reverse of removal, followed by reconnecting the negative battery terminal.
