Genuine Honda Accord Sway Bar Bushing

Honda Accord Sway Bar Bushing Parts Questions & Answers

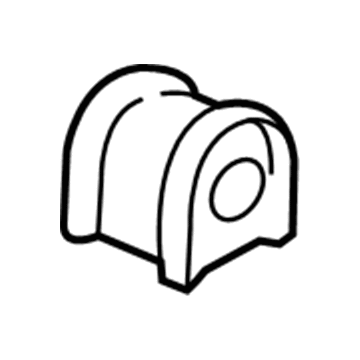

• Bush, Front Stabilizer Holder
  51306-SDA-A03
  Q: How to remove and install the front stabilizer bar and bushings in the Honda Accord?

  A: To lower the front subframe and take out the stabilizer bar, check for damaged stabilizer bar links, brackets, and bushings. If damaged, remove the bracket and bushing from the stabilizer bar and replace with new ones, ensuring that the slits face the same direction. Reinstall the bolts on brackets and stabilizer bars. Connect bars to links and tighten nuts. Install wheels then lower vehicle and tighten lug nuts.
• Bush, Rear Stabilizer Holder
  52306-TA1-A02
  Q: How to remove and inspect the rear stabilizer bar and bushings on the Honda Accord?

  A: Loosen the rear wheel lug nuts, raise the rear of the vehicle, place it securely on jackstands and remove the rear wheels. Remove the stabilizer bar-to-link nuts. Use an Allen wrench to prevent the ballstud from turning when removing the attaching link nut. Unbolt the bushing bracket from each side of the stabilizer bar and then remove the bar. Pull the retainers off the bar and inspect the bushings for cracks, breaks and other signs of deterioration. If the bushings are damaged, replace them. Also check the stabilizer bar links for loose balljoints and other damage, replacing them if necessary. Installation is the reverse of removal. Use new self-locking nuts to attach the stabilizer bar links.
