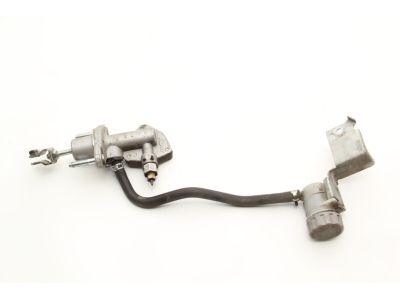

Honda 46920-S7A-A04 Master Cylinder Assembly, Clutch

You can Select Your Vehicle to check if 46920-S7A-A04 fits your vehicle.

Remove the air filter housing. Remove the battery and battery tray. Disconnect the hydraulic line mounting bracket. Clamp a pair of locking pliers onto the clutch fluid feed hose, a couple of inches downstream of the reservoir. The pilers should be just tight enough to prevent fluid flow when the hose is disconnected. Disconnect the hydraulic line at the cylinder. Loosen the fluid feed hose clamp and detach the hose from the cylinder. Have rags handy as some fluid will be lost as the line is removed. Cap or plug the ends of the lines (orhose) to prevent fluid leakage and the entry of contaminants. Caution: Don't allow brake fluid to come into contact with the paint as it will damage the finish. Working under the dashboard, remove the cotter pin or spring clip from the master cylinder pushrod clevis. Pull out the clevis pin to disconnect the pushrod from the pedal. Unscrew the two clutch master cylinder retaining nuts and remove the cylinder. Installation is the reverse of removal, noting the following points: Use new gasket between the master cylinder and the firewall. Tighten the master cylinder mounting nuts. Install a new O-ring seal on the hydraulic line fitting at the master cylinder. Fill the clutch master cylinder reservoir with brake fluid conforming to DOT 3 specifications and bleed the clutch system.

NO IT DOES NOT COME WITH THE RESERVOIR. THE RESERVOIR PART NUMBER IS 46965-S6A-013
