How to disassemble and reassemble a strut and coil spring assembly on Honda Ridgeline?

If your struts or coil springs show wear, consider all options before starting work. Strut assemblies can't be serviced and must be replaced if faulty. You may find complete strut assemblies on an exchange basis, saving time and effort. Before disassembly, check part costs and availability. Remove the strut and spring assembly, mount it in a vise, and use a spring compressor to relieve pressure. Unscrew the thrust bearing retaining nut and remove the upper mount. Inspect the bearing and rubber mount for damage and replace if needed. Remove the upper spring seat and insulator, checking for damage. Lift the compressed spring from the assembly. Remove the dust cover plate and dust cover, then slide off the rubber bump stop and check for deterioration. To reassemble, extend the damper rod and install the rubber bump stop, dust cover, and dust cover plate. Place the compressed coil spring onto the lower seat of the damper, install the upper insulator and spring seat, followed by the bearing and suspension support. Install the washer and nut, tighten it, remove the spring compressor tool and install the strut/spring assembly.

Genuine Honda Ridgeline Coil Springs

Strut Spring

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Coil Springs found

View related parts

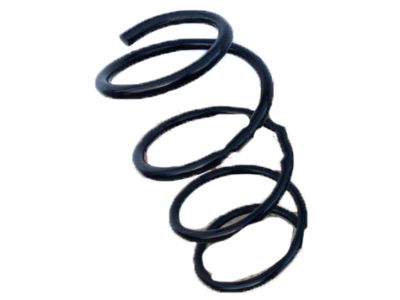

Honda Ridgeline Spring, Left Front
Part Number: 51406-SJC-A02
$138.33 MSRP: $197.04
You Save: $58.71 (30%)
ADD TO CART
Product Specifications
- Other Name: Coil Spring; Spring
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2006-2014 Honda Ridgeline | 4 Door RT, 4 Door RTL, 4 Door RTS, 4 Door RTX, 4 Door Sport | KA 5AT
View related parts
Honda Ridgeline Spring, Right Front
Part Number: 51401-SJC-A02
$138.33 MSRP: $197.04
You Save: $58.71 (30%)
ADD TO CART
Product Specifications
- Other Name: Coil Spring; Spring
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2006-2014 Honda Ridgeline | 4 Door RT, 4 Door RTL, 4 Door RTS, 4 Door RTX, 4 Door Sport | KA 5AT
View related parts
Honda Ridgeline Spring, Rear
Part Number: 52441-SJC-A01
$131.51 MSRP: $187.33
You Save: $55.82 (30%)
ADD TO CART
Product Specifications
- Other Name: Coil Spring; Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2006-2014 Honda Ridgeline | 4 Door RT, 4 Door RTL, 4 Door RTS, 4 Door RTX, 4 Door Sport | KA 5AT
View related parts
Honda Ridgeline Spring, Left Front
Part Number: 51406-T6Z-A01
$75.44 MSRP: $106.55
You Save: $31.11 (30%)
ADD TO CART
Product Specifications
- Other Name: Coil Spring, Spring
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2017-2023 Honda Ridgeline | 4 Door Black, 4 Door RT (AWD), 4 Door RTL, 4 Door RTL (AWD), 4 Door RTS (AWD), 4 Door Sport (AWD), Black Edition, RTL, RTL-E, Sport | KA 6AT, KA 9AT
View related parts
Honda Ridgeline Spring, Right Front
Part Number: 51401-T6Z-A01
$76.44 MSRP: $107.97
You Save: $31.53 (30%)
ADD TO CART
Product Specifications
- Other Name: Coil Spring, Spring
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2017-2023 Honda Ridgeline | 4 Door Black, 4 Door RT (AWD), 4 Door RTL, 4 Door RTL (AWD), 4 Door RTS (AWD), 4 Door Sport (AWD), Black Edition, RTL, RTL-E, Sport | KA 6AT, KA 9AT
View related parts
Honda Ridgeline Spring, Right Front
Part Number: 51401-TJZ-A01
$71.46 MSRP: $100.93
You Save: $29.47 (30%)
ADD TO CART
Product Specifications
- Other Name: Coil Spring, Spring
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2017-2020 Honda Ridgeline | 4 Door RT (2WD), 4 Door RTL (2WD), 4 Door RTS (2WD), 4 Door Sport (2WD) | KA 6AT, KA 9AT
View related parts
Honda Ridgeline Spring, Rear
Part Number: 52441-T6Z-A01
$56.37 MSRP: $79.62
You Save: $23.25 (30%)
ADD TO CART
Product Specifications
- Other Name: Coil Spring, Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2017-2023 Honda Ridgeline | 4 Door Black, 4 Door RT (AWD), 4 Door RTL, 4 Door RTL (AWD), 4 Door RTS (AWD), 4 Door Sport (AWD), Black Edition, RTL, RTL-E, Sport | KA 6AT, KA 9AT
View related parts
Honda Ridgeline Spring, Rear
Part Number: 52441-TJZ-A01
$71.74 MSRP: $101.33
You Save: $29.59 (30%)
ADD TO CART
Product Specifications
- Other Name: Coil Spring, Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2017-2020 Honda Ridgeline | 4 Door RT (2WD), 4 Door RTL (2WD), 4 Door RTS (2WD), 4 Door Sport (2WD) | KA 6AT, KA 9AT
View related parts
Honda Ridgeline Spring, Left Front
Part Number: 51406-TJZ-A01
$73.31 MSRP: $103.56
You Save: $30.25 (30%)
ADD TO CART
Product Specifications
- Other Name: Coil Spring, Spring
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2017-2020 Honda Ridgeline | 4 Door RT (2WD), 4 Door RTL (2WD), 4 Door RTS (2WD), 4 Door Sport (2WD) | KA 6AT, KA 9AT

Honda Ridgeline Coil Springs

In Honda Ridgeline coils springs are also used, located on the shocks of the vehicle that has to stay on the suspension system and to damp themselves and absorb road shocks, which are on roads. Some of its functions include, adjusting ride height of the vehicle to avoid such things as rattle or sagging that may occur and ensuring proper alignment of the wheels in addition to wheel balloon that is likely to cause abnormal tire wear. Whenever the coil springs are worn out, they can be replaced with new ones especially the top specification for the modern vehicles and clone reproductions of the springs for old models. Several types of coil springs have been installed in Honda Ridgeline vehicles linear rate springs progressive and dual-rate springs. Linear rate springs do not vary the stiffness whereas progressive springs have a variable rate in order to enhance the ride and control. Moreover, coil springs with adjustable height can be further adjusted so as to give some more space for wheel and tire changes.

In search of affordable OEM Honda Ridgeline Coil Springs? Consider browsing through our extensive inventory of genuine Honda Ridgeline Coil Springs. Not only do we provide market-leading prices and a manufacturer's warranty, but we also pride ourselves on exceptional customer service and swift delivery.

Honda Ridgeline Coil Springs Parts Questions & Experts Answers

Spring, Rear
52441-SJC-A01
Q: How to disassemble and reassemble a strut and coil spring assembly on Honda Ridgeline?
A: If your struts or coil springs show wear, consider all options before starting work. Strut assemblies can't be serviced and must be replaced if faulty. You may find complete strut assemblies on an exchange basis, saving time and effort. Before disassembly, check part costs and availability. Remove the strut and spring assembly, mount it in a vise, and use a spring compressor to relieve pressure. Unscrew the thrust bearing retaining nut and remove the upper mount. Inspect the bearing and rubber mount for damage and replace if needed. Remove the upper spring seat and insulator, checking for damage. Lift the compressed spring from the assembly. Remove the dust cover plate and dust cover, then slide off the rubber bump stop and check for deterioration. To reassemble, extend the damper rod and install the rubber bump stop, dust cover, and dust cover plate. Place the compressed coil spring onto the lower seat of the damper, install the upper insulator and spring seat, followed by the bearing and suspension support. Install the washer and nut, tighten it, remove the spring compressor tool and install the strut/spring assembly.
