How to replace Brake Pad on Honda Pilot?

This procedure applies to both front and rear disc brakes. Begin by removing the cap from the brake fluid reservoir. Loosen the wheel lug nuts, raise the front or rear of the vehicle, support it on jackstands, and block the wheels at the opposite end. Take off the wheels and work on one brake assembly at a time, using the other assembled brake for reference. Inspect the brake disc carefully, and if machining is necessary, remove the disc and subsequently the pads. Push the piston back into its bore using a C-clamp, ensuring that the fluid in the master cylinder doesn't overflow; if it looks like it might, remove some of the fluid. Before proceeding, clean the brake assembly with brake cleaner, letting it dry and placing a drain pan underneath to catch any residue; avoid using compressed air. Detach the caliper by removing the lower bolt, and for full detachment, both bolts; ensure the caliper doesn't hang by the brake hose. Secure it with a wire, then remove the inner and outer pads and shims, noting the position of any metal wear indicators. Take off the shim(s) from each pad, noting their order and position. Apply disc brake grease between the shim(s) and the back of each brake pad. Replace the shims on the pads in their original order and position. Remove and check the fit of the upper and lower pad support plates, replacing them if necessary. Clean the upper and lower sliding pins, grease them with high-temperature grease, and put them back, ensuring the pin boots aren't damaged. Reinstall the inner and outer pads, ensuring they're seated correctly on the support plates and any wear indicators are in the original positions. Reposition the caliper over the pads, secure it with the bolts, and tighten them. Once completed, depress the brake pedal a few times to adjust the pads with the disc. Lastly, check the brake fluid level and adjust if needed, and test the brakes before returning the vehicle to normal use.

Genuine Honda Pilot Brake Pad Set

Disc Brake Pad Set

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

15 Brake Pad Sets found

View related parts
Honda Pilot Pad Set, Front
Part Number: 45022-TZ5-A01
$62.06 MSRP: $87.65
You Save: $25.59 (30%)
ADD TO CART
Product Specifications
- Other Name: Front Pads; Brake Pad, Front Pad
- Position: Front
- Replaced by: 45022-TZ5-A02
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2016-2018 Honda Pilot | 5 Door ELITE (AWD), 5 Door EX (2WD), 5 Door EX (AWD), 5 Door EX-L (2WD), 5 Door EX-L (AWD), 5 Door LX (2WD), 5 Door LX (AWD), 5 Door Touring (2WD), 5 Door Touring (AWD) | KA 6AT, KA 9AT
View related parts
Honda Pilot Pad Set, Rear
Part Number: 43022-TZ5-A01
$58.52 MSRP: $82.65
You Save: $24.13 (30%)
ADD TO CART
Product Specifications
- Other Name: Brake Pads; Brake Pad, Rear Pad
- Position: Rear
- Replaces: 43022-TZ5-A00
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2016-2018 Honda Pilot | 5 Door ELITE (AWD), 5 Door EX (2WD), 5 Door EX (AWD), 5 Door EX-L (2WD), 5 Door EX-L (AWD), 5 Door LX (2WD), 5 Door LX (AWD), 5 Door Touring (2WD), 5 Door Touring (AWD) | KA 6AT, KA 9AT
View related parts
Honda Pilot Pad Set, Front
Part Number: 45022-TZ5-A10
$62.06 MSRP: $87.65
You Save: $25.59 (30%)
ADD TO CART
Product Specifications
- Other Name: Brake Pad, Front Pad
- Position: Front
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2019-2022 Honda Pilot | 5 Door Black (AWD), 5 Door ELITE (AWD), 5 Door EX (2WD), 5 Door EX (AWD), 5 Door EX-L (2WD), 5 Door EX-L (AWD), 5 Door LX (2WD), 5 Door LX (AWD), 5 Door SE (2WD), 5 Door SE (AWD), 5 Door Touring (2WD), 5 Door Touring (AWD), Black Edition, EX-L, Elite, Special Edition, Sport, Touring, TrailSport | KA 6AT, KA 9AT
View related parts
Honda Pilot Pad Set, Rear
Part Number: 43022-TG7-A00
$58.52 MSRP: $82.65
You Save: $24.13 (30%)
ADD TO CART
Product Specifications
- Other Name: Brake Pad, Rear Pad
- Position: Rear
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2019-2022 Honda Pilot | 5 Door Black (AWD), 5 Door ELITE (AWD), 5 Door EX (2WD), 5 Door EX (AWD), 5 Door EX-L (2WD), 5 Door EX-L (AWD), 5 Door LX (2WD), 5 Door LX (AWD), 5 Door SE (2WD), 5 Door SE (AWD), 5 Door Touring (2WD), 5 Door Touring (AWD), Black Edition, EX-L, Elite, Special Edition, Sport, Touring, TrailSport | KA 6AT, KA 9AT
View related parts
Honda Pilot Pad Set, Rear
Part Number: 43022-SZA-A11
$58.52 MSRP: $82.65
You Save: $24.13 (30%)
ADD TO CART
Product Specifications
- Other Name: Brake Pads; Brake Pad, Rear Pad
- Position: Rear
- Replaces: 43022-SZA-A10
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2012-2015 Honda Pilot | 5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX 4.4 (4WD), 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door LX (2WD), 5 Door LX (4WD), 5 Door LX 4.2 (4WD), 5 Door SE (2WD), 5 Door SE (4WD), 5 Door Touring (2WD), 5 Door Touring (4WD) | KA 5AT
View related parts
Honda Pilot Pad Set Front
Part Number: 45022-SZA-405
$62.06 MSRP: $87.65
You Save: $25.59 (30%)
ADD TO CART
Product Specifications
- Other Name: Front Pads
- Position: Front
- Replaced by: 45022-SZA-406
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2012-2015 Honda Pilot | 5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX 4.4 (4WD), 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door LX (2WD), 5 Door LX (4WD), 5 Door LX 4.2 (4WD), 5 Door SE (2WD), 5 Door SE (4WD), 5 Door Touring (2WD), 5 Door Touring (4WD) | KA 5AT
View related parts
Honda Pilot Set, Pad Front (63.5M
Part Number: 45022-S9V-A02
$62.06 MSRP: $87.65
You Save: $25.59 (30%)
ADD TO CART
Product Specifications
- Other Name: Brake Pad, Front Pad
- Position: Front
- Replaces: 45022-S9V-A01, 45022-S9V-A00
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2003-2008 Honda Pilot | 5 Door EX, 5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX-L, 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door EX-SE (2WD), 5 Door EX-SE (4WD), 5 Door LX, 5 Door LX (2WD), 5 Door LX (4WD), 5 Door LX-VP (2WD), 5 Door LX-VP (4WD) | KA 5AT, KL 5AT
View related parts
Honda Pilot Set, Pad Rear (Axs38
Part Number: 43022-S3V-A03
$58.52 MSRP: $82.65
You Save: $24.13 (30%)
ADD TO CART
Product Specifications
- Position: Rear
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2003-2008 Honda Pilot | 5 Door EX, 5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX-L, 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door EX-SE (2WD), 5 Door EX-SE (4WD), 5 Door LX, 5 Door LX (2WD), 5 Door LX (4WD), 5 Door LX-VP (2WD), 5 Door LX-VP (4WD) | KA 5AT, KL 5AT
View related parts
Honda Pilot Pad Set, Front
Part Number: 45022-SZA-A01
$62.06 MSRP: $87.65
You Save: $25.59 (30%)
ADD TO CART
Product Specifications
- Other Name: Brake Pads; Brake Pad, Front Pad
- Position: Front
- Replaces: 45022-SZA-A00
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2009-2011 Honda Pilot | 5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door LX (2WD), 5 Door LX (4WD), 5 Door Touring (2WD), 5 Door Touring (4WD) | KA 5AT
View related parts
Honda Pilot Pad Set, Front
Part Number: 45022-SZA-A11
$62.06 MSRP: $87.65
You Save: $25.59 (30%)
ADD TO CART
Product Specifications
- Other Name: Front Pads
- Position: Front
- Replaced by: 45022-SZA-406
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2012-2015 Honda Pilot | 5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX 4.4 (4WD), 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door LX (2WD), 5 Door LX (4WD), 5 Door LX 4.2 (4WD), 5 Door SE (2WD), 5 Door SE (4WD), 5 Door Touring (2WD), 5 Door Touring (4WD) | KA 5AT
View related parts
Honda Pilot Pad Set, Rear
Part Number: 43022-SZA-A01
$58.52 MSRP: $82.65
You Save: $24.13 (30%)
ADD TO CART
Product Specifications
- Other Name: Brake Pads; Brake Pad, Rear Pad
- Position: Rear
- Replaces: 43022-SZA-A00
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2009-2011 Honda Pilot | 5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door LX (2WD), 5 Door LX (4WD), 5 Door Touring (2WD), 5 Door Touring (4WD) | KA 5AT
View related parts

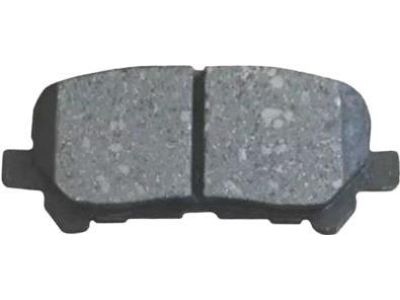

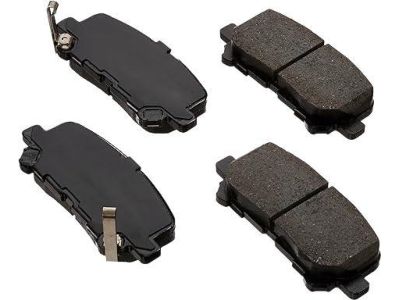

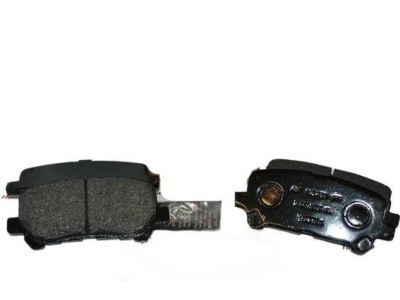

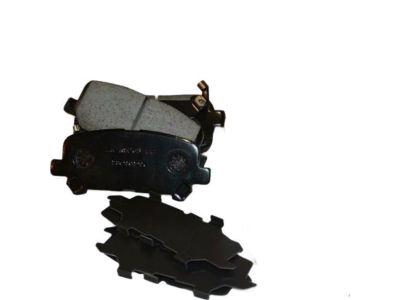

Honda Pilot Pad Set, Rear
Part Number: 43022-SZA-A00
$58.52 MSRP: $82.65
You Save: $24.13 (30%)
ADD TO CART
Product Specifications
- Position: Rear
- Replaced by: 43022-SZA-A01
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2009-2011 Honda Pilot | 5 Door EX (2WD), 5 Door EX (4WD), 5 Door EX-L (2WD), 5 Door EX-L (4WD), 5 Door LX (2WD), 5 Door LX (4WD), 5 Door Touring (2WD), 5 Door Touring (4WD) | KA 5AT
View related parts
Honda Pilot PAD SET, FR
Part Number: 45022-T90-A01
$62.06 MSRP: $87.65
You Save: $25.59 (30%)
ADD TO CART
Product Specifications
- Other Name: Brake Pad
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2023-2024 Honda Pilot | Elite, EX-L, Sport, Touring, TrailSport
View related parts
Honda Pilot PAD SET, RR
Part Number: 43022-T90-A01
$58.52 MSRP: $82.65
You Save: $24.13 (30%)
ADD TO CART
Product Specifications
- Other Name: Brake Pad
- Replaces: 43022-T90-A00
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2023-2024 Honda Pilot | Elite, EX-L, Sport, Touring, TrailSport
View related parts
Honda Pilot Pad Set
Part Number: 08L02-S9V-100R3
Product Specifications
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 2003-2007 Honda Pilot | 5 Door LX, 5 Door LX (2WD), 5 Door LX (4WD) | KA 5AT, KL 5AT

Honda Pilot Brake Pad Set

In the Honda Pilot automobiles, the Brake Pad Set is an important part of the braking system that helps to halting the car with the aid of friction with the brake rotors. They are made of friction material which is molded and either bonded on or riveted to a steel base plate to facilitate endurance to high temperatures when in use. Maintenance should be a routine affair because the Brake Pad Set are serviceable and require replacement after some time, usually after 50,000 miles. Various of brake pads can be installed in the Honda Pilot models: non-metallic, semi-metallic, fully-metallic and ceramic brake pads: all of them have peculiarities in relation to friction, wear resistance and noise. Furthermore the right fixing of additional equipments inclusive of clips and springs also plays a crucial role in the functionality of the brake pads, and also their durability, in equal distributions as it should function without making noise.

In search of affordable OEM Honda Pilot Brake Pad Set? Consider browsing through our extensive inventory of genuine Honda Pilot Brake Pad Set. Not only do we provide market-leading prices and a manufacturer's warranty, but we also pride ourselves on exceptional customer service and swift delivery.

Honda Pilot Brake Pad Set Parts Questions & Experts Answers

Set, Pad Rear (Axs38
43022-S3V-A03
Q: How to replace Brake Pad on Honda Pilot?
A: This procedure applies to both front and rear disc brakes. Begin by removing the cap from the brake fluid reservoir. Loosen the wheel lug nuts, raise the front or rear of the vehicle, support it on jackstands, and block the wheels at the opposite end. Take off the wheels and work on one brake assembly at a time, using the other assembled brake for reference. Inspect the Brake Disc carefully, and if machining is necessary, remove the disc and subsequently the pads. Push the piston back into its bore using a C-clamp, ensuring that the fluid in the master cylinder doesn't overflow; if it looks like it might, remove some of the fluid. Before proceeding, clean the brake assembly with brake cleaner, letting it dry and placing a drain pan underneath to catch any residue; avoid using compressed air. Detach the caliper by removing the lower bolt, and for full detachment, both bolts; ensure the caliper doesn't hang by the brake hose. Secure it with a wire, then remove the inner and outer pads and shims, noting the position of any metal wear indicators. Take off the shim(s) from each pad, noting their order and position. Apply disc brake grease between the shim(s) and the back of each brake pad. Replace the shims on the pads in their original order and position. Remove and check the fit of the upper and lower pad support plates, replacing them if necessary. Clean the upper and lower sliding pins, grease them with high-temperature grease, and put them back, ensuring the pin boots aren't damaged. Reinstall the inner and outer pads, ensuring they're seated correctly on the support plates and any wear indicators are in the original positions. Reposition the caliper over the pads, secure it with the bolts, and tighten them. Once completed, depress the brake pedal a few times to adjust the pads with the disc. Lastly, check the brake fluid level and adjust if needed, and test the brakes before returning the vehicle to normal use.
