Honda 12290-R40-A02 Spark Plug (Sxu22Hcr11S) (Denso)

You can Select Your Vehicle to check if 12290-R40-A02 fits your vehicle.

The spark plugs are located in the center of each cylinder head. In most cases the tools necessary for spark plug replacement include a spark plug socket which fits onto a ratchet, various extensions and a feeler gauge to check the spark plug gap. A torque wrench should be used when tightening the spark plugs due to the engines being equipped with an aluminum cylinder head(s). The best approach when replacing the spark plugs is to purchase the new spark plugs beforehand, check the gaps and then replace each plug one at a time. Be sure to obtain the correct plug for your specific engine. If differences exist between the sources, purchase the spark plug type specified on the VECI label as it was printed for your specific engine. Allow the engine to cool completely before attempting to remove any of the plugs. During this cooling off time, each of the new spark plugs can be inspected for defects and the gaps can be checked. The gap is checked by inserting the proper thickness gauge between the electrodes at the lip of the plug. The manufacturer recommends again adjusting the gap on platinum- or iridium-tipped spark plugs; if the gap is out of specification, replace the plug. Also, at this time check for cracks in the spark plug body. Cover the fender to prevent damage to the paint. Fender covers are available from auto parts stores but an old blanket will work just fine. Remove the ignition coils. If compressed air is available, use it to blow any dirt or foreign material away from the spark plug area. Place the spark plug socket over the plug and remove it from the engine by turning it in a counterclockwise direction. Compare the spark plug with the chart on the inside back cover to get an indication of the overall running condition of the engine. Apply a small amount of anti-seize com-pound to the spark plug threads. Install one of the new plugs into the hole until you can no longer turn it with your fingers, then tighten it with a torque wrench or the ratchet. It is a good idea to slip a short length of rubber hose over the end of the plug to use as a tool to thread it into place. Attach the coil to the new spark plug using a twisting motion until it is firmly seated on the end of the spark plug. Tighten the mounting bolts securely. Repeat the procedure for the remaining spark plugs.

The recommended approach when replacing spark plugs is to purchase the new spark plugs beforehand, check the gaps, and then replace each plug one at a time.

Before removing the spark plugs, you should remove the ignition coils. If compressed air is available, use it to blow any dirt or foreign material away from the spark plug area.

Before starting, you should purchase the correct spark plugs for your specific engine and adjust them to the proper gap. Also, allow the engine to cool completely before removing any plugs.

yes they are.

THEY ARE PLATINUM. YES THEM ARE MADE IN JAPAN.

Honda plugs come pre gapped, but never hurts to double check

The spark plugs already come pre gapped.

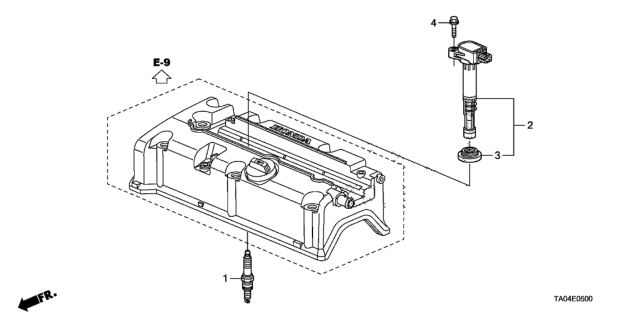

- 12290-R40-A02 / SPARK PLUG (SXU22HCR11S) (DENSO) These spark plugs are sold in singles and 4 total are required.
