Make sure this part fits

Honda 80450-SZW-003 Sensor Assembly, Pressure

2011-2014 Honda 80450SZW003

Customer Questions & Expert Answers (6)
Honda 80450-SZW-003 Sensor Assembly, Pressure
Honda 80450-SZW-003 Sensor Assembly, Pressure
Honda 80450-SZW-003 Sensor Assembly, Pressure
  • Part Description
    Pressure Sensor
  • Replaced By
    80450-T2F-A01
  • Manufacturer
    Honda
Make sure this part fits
$89.80 MSRP: $126.83
You Save: $37.03 (30%)
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

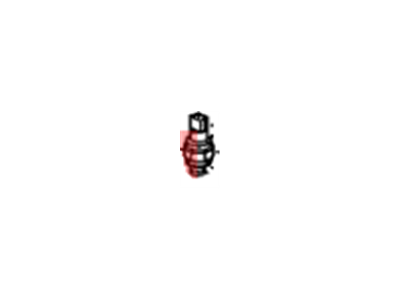

  • 80450-SZW-003 Sensor Assembly, Pressure is Ref No. 9 in the diagram below

    2011 Honda Accord Sensor Assembly, Pressure Diagram for 80450-SZW-003
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts

  • Product Specifications

    BrandGenuine Honda
    Manufacturer Part Number80450-SZW-003
    Part DescriptionPressure Sensor
    Item Dimensions2.0 x 1.2 x 1.2 inches
    Item Weight0.50 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    ManufacturerHonda
    SKU80450-SZW-003
    WarrantyThis genuine Honda part is guaranteed by Honda's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California’s Proposition 65

  • Vehicle Fitment

    Year Make Model Body & Trim Emission & Transmission
    2012 Honda Accord2 Door EX, 2 Door EX-L, 2 Door EX-L V6, 2 Door LX-S, 4 Door EX, 4 Door EX-L, 4 Door EX-L V6, 4 Door EX-V6, 4 Door LX, 4 Door SEKA 5AT, KA 5MT, KA 6MT, KL 5AT, KL 5MT
    2011 Honda Accord2 Door EX, 2 Door EX-L, 2 Door EX-L V6, 2 Door LX-S, 4 Door EX, 4 Door EX (PZEV), 4 Door EX-L, 4 Door EX-L (PZEV), 4 Door EX-L V6, 4 Door EX-V6, 4 Door LX, 4 Door LX (PZEV), 4 Door SE, 4 Door SE (PZEV)KA 5AT, KA 5MT, KA 6MT, KL 5AT, KL 5MT
    2014 Honda CR-V5 Door EX (2WD), 5 Door EX (AWD), 5 Door EX-L (2WD), 5 Door EX-L (AWD), 5 Door LX (2WD), 5 Door LX (AWD)KA 5AT
    2013 Honda CR-V5 Door EX (2WD), 5 Door EX (AWD), 5 Door EX-L (2WD), 5 Door EX-L (AWD), 5 Door LX (2WD), 5 Door LX (AWD)KA 5AT
    2012 Honda CR-V5 Door EX (2WD), 5 Door EX (AWD), 5 Door EX-L (2WD), 5 Door EX-L (AWD), 5 Door LX (2WD), 5 Door LX (AWD)KA 5AT
    2012 Honda Civic2 Door EX, 2 Door EX-L, 2 Door LX, 2 Door SI, 4 Door EX, 4 Door EX-L, 4 Door GX, 4 Door HF, 4 Door LX, 4 Door LX (AT), 4 Door MX (Hybrid), 4 Door SIKA 5AT, KA 5MT, KA 6MT, KA CVT, KL 5AT, KL CVT
    2014 Honda Crosstour5 Door EX, 5 Door EX (2WD), 5 Door EX-L, 5 Door EX-L (2WD), 5 Door EX-L (4WD)KA 5AT, KA 6AT
    2013 Honda Crosstour5 Door EX, 5 Door EX (2WD), 5 Door EX-L, 5 Door EX-L (2WD), 5 Door EX-L (4WD)KA 5AT, KA 6AT
    2012 Honda Crosstour5 Door EX, 5 Door EX (2WD), 5 Door EX-L, 5 Door EX-L (2WD), 5 Door EX-L (4WD)KA 5AT

  • Customer Questions & Expert Answers

    Q:
    I just wanted to verify fitment prior to ordering part Posted by HondaPartsNow Specialist
    A:
    You can Select Your Vehicle to check if 80450-SZW-003 fits your vehicle.
    Posted by HondaPartsNow Specialist
    Q:
    How Should the Air Conditioning Pressure Switch Be Handled on Honda Crosstour? Posted by Customer
    A:
    The air conditioning pressure switch should be handled by a qualified technician. It is located on the refrigerant line adjacent to the compressor. The switch should be unscrewed, lubricated with clean refrigerant oil, and screwed back in place. Reconnect the electrical connector and the system should be evacuated, charged, and leak-tested.
    Posted by HondaPartsNow Specialist
    Q:
    How is the A/C pressure sensor installed and what steps are involved in the process on Honda CR-V? Posted by Customer
    A:
    The HVAC Pressure Switch is mounted in the refrigerant line between the condenser and the evaporator, detecting low (28 psi) and high (455 psi) refrigerant line pressure, shutting the system off if the pressure falls below or exceeds these values. Begin by having the refrigerant discharged and recovered by an air conditioning technician. Next, set the parking brake, block the rear wheels, and raise the front of the vehicle, supporting it securely on jackstands, then remove the under-vehicle splash shield. Locate the switch on the right side of the vehicle and unplug the electrical connector from the HVAC Pressure Switch, ensuring clarity by removing the front bumper cover if necessary. Unscrew the pressure switch from the line, holding the stationary fitting with an open-end wrench to prevent damage. Lubricate the switch O-ring with clean refrigerant oil of the correct type, then screw the new switch onto the refrigerant line and tighten it securely. Reconnect the electrical connector and have the system evacuated, charged, and leak tested by an air conditioning technician.
    Posted by HondaPartsNow Specialist
    Q:
    What should be done to the pressure switch from the 2011 Honda Accord? Posted by Customer
    A:
    The electrical connector from the air conditioning pressure switch should be unplugged, the pressure switch should be unscrewed from the condenser, the O-ring on the switch should be lubricated with clean refrigerant oil of the correct type, the new switch should be screwed in place until hand tight, then tightened securely, and the electrical connector should be reconnected.
    Posted by HondaPartsNow Specialist
    See expert answers on similar HVAC Pressure Switch
    Q:
    How can you locate the A/C pressure sensor for the 2013 Honda Civic? Posted by Customer
    A:
    The sensor is located on the right side of the vehicle.
    Posted by HondaPartsNow Specialist
    See expert answers on similar HVAC Pressure Switch
    Q:
    I need electrical connectors for the following parts: 77930-T0A-A11 & 80450-SZW-003. Please advise what are the part numbers for the above parts? Posted by Customer: 2013 Honda CR-V
    A:
    connectors not sold separate would need an engine harness 32200-t0A-a22
    Posted by HondaPartsNow Specialist 10/4/2017
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

Genuine Honda Part 80450-SZW-003, the Right Choice

To ensure reliability, purchase Honda part # 80450-SZW-003 Sensor Assembly, Pressure. It is sometimes referred to as Honda HVAC Pressure Switch, Honda A/C System Valve Core, Honda A/C Compressor Cut-Out Switches. In terms of quality, OEM parts are the wise choice for Honda owners who want to keep their vehicles at peak performance. They are manufactured to follow official strict factory specifications and are made in world-class facilities. They undergo rigorous tests to ensure that they are durable and safe to use. This part fits 2011-2012 Honda Accord, 2012-2014 Honda CR-V, 2012 Honda Civic, 2012-2014 Honda Crosstour.

HondaPartsNow.com is a leading supplier of genuine Honda parts and accessories such as Honda 80450SZW003 Sensor Assembly, Pressure. When it comes to choosing the right parts for your vehicle, the solution is simple: shop from our wide selection of genuine Honda parts at competitive prices available on HondaPartsNow.com. We prioritize your convenience, 100% satisfaction, and peace of mind by offering a user-friendly catalog, manufacturer-warranted OEM Honda parts, a hassle-free return policy, and swift delivery service.
