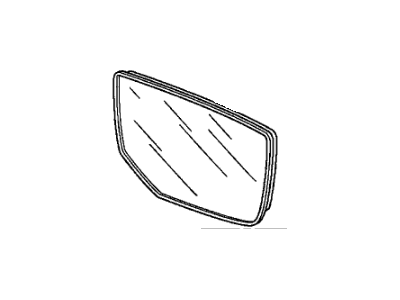

Honda 76253-TP6-A11 Mirror, Passenger Side (Flat) (Heated)

You can Select Your Vehicle to check if 76253-TP6-A11 fits your vehicle.

For outside mirrors, installation involves reversing the removal process, descend the window further, remove the mirror trim plate, disconnect the electrical connection and then unscrew the four nuts. Pull out the electrical connection if used, then take out the bolts and unscrew the mirror and then remove the clips and the trim circle around the shin. In regards with inside mirrors in the previous year models, the mirror base of which must be rotated 90 degrees, the mirror has to be slid downwards at the bottom of the windshield in order to disengage it from the mounting bracket, and the final step is to return the support base of inside mirrors to the windshield after which clean the glass and put the inside mirror back on with a special mirror adhesive kit. For all years 2013 and up with out auto dimming or camera unit, turn in the trim cover at the base of the mirror and at the side hook of the mount pull down to allow the mirror base to slide down and off. For the models that have automatic dimming or a camera unit, employ the trim tool to pry the cover open and twist the electrical connectors loose also if your model has a trim cover around the camera unit, carefully pull it out, before turning the Tone screw and pulling the mirror base loose.

The MICU or GCM controls various functions including door locks, power windows, ignition lock and security system, interior and exterior lights, Daytime Running Lights, horn, windshield wipers, heating/air conditioning, power mirrors, and hazard flasher system.
