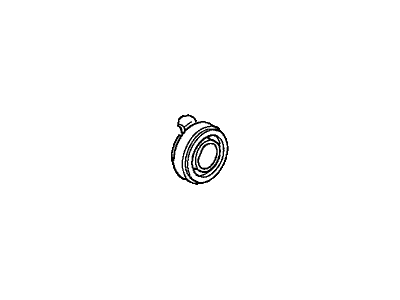

Honda 22810-57A-006 Bearing, Clutch Rls

You can Select Your Vehicle to check if 22810-57A-006 fits your vehicle.

Access to the clutch components is normally accomplished by removing the transaxle, leaving the engine in the vehicle. To support the clutch disc during removal, install a clutch alignment tool through the clutch disc hub. Carefully inspect the flywheel and pressure plate for indexing marks and scribe or paint marks yourself if they cannot be found. Turning each bolt a little at a time, loosen the pressure plate-to-flywheel bolts and hold the pressure plate securely and completely remove the bolts, followed by the pressure plate and clutch disc. Ordinarily, when a problem occurs in the clutch, it can be attributed to wear of the clutch driven plate assembly (clutch disc). Inspect the flywheel for cracks, heat checking, grooves and other obvious defects and the lining on the clutch disc for at least 1/16-inch of lining above the rivet heads. Check for loose rivets, distortion, cracks, broken springs and other obvious damage. Remove the pilot bushing using a slide hammer and puller attachment and lightly lubricate the outside surface with grease before driving it into the recess with a bearing driver or a socket. Clean the flywheel and pressure plate machined surfaces with brake cleaner, position the clutch disc and pressure plate against the flywheel, align the indexing marks on the pressure plate and flywheel, insert the pressure plate-to-flywheel bolts, center the clutch disc, tighten the pressure plate-to-flywheel bolts, remove the alignment tool, lubricate the inner groove of the release bearing, place a small amount of grease on the release lever contact areas and the transaxle input shaft bearing retainer and install the clutch release bearing.

Remove the transaxle. Pull the clutch release fork off the ballstud and slide the release bearing off the input shaft along with the release fork. Inspection: Wipe off the bearing with a clean rag and inspect it for damage, wear and cracks. Don't immerse the bearing in solvent - it's sealed for life and immersion in solvent will ruin it. Hold the center of the bearing and rotate the outer portion while applying pressure. If the bearing doesn't turn smoothly or if it's noisy or rough, replace it. Note: Considering the difficulty involved with replacing the release bearing, we recommend replacing the release bearing whenever the clutch components are replaced. Installation: Lightly lubricate the friction surfaces of the release bearing, ballstud and the sleeve of the input shaft bearing retainer with high-temperature grease. Install the release lever and bearing onto the input shaft. The remainder of installation is the reverse of removal.

Typically, access to the clutch components is gained by removing the transaxle while the engine remains in the vehicle.

Install the release lever and bearing onto the input shaft. The remainder of installation is the reverse of removal.
